Wet Steel Frame Fire-Resistance Coat made up of natural material, volcanic ash
Greenness Environmentally Materials - volcanic ash
Environmentally-friendly fire-resistance coat, ANGEL COAT seeks a pleasant environment that starts from nature and ends in nature!


Item Content Remarks
Main ingredients   volcanic ash, perlite, plaster, cement, pulp, agent, etc.
Product name
   Angel Coat - AT, AX
  Angel Coat - ST
classification   General facilities, residential facilities, industrial facilities
Quality   Construction density: 350kg/§³
  Attachment strength: 6,800kgf/§³
  Dust grade: 0.01g/§³
Use   Angel Coat - AT, AX (Steel Frame Fire-Resistance Coat )
  Angel Coat - ST (Insulating sound absorption finish)
Weight   1Pack: 18kg
Price   Not determined
Function (features)   deodorization, flame resistance, adiabaticity, VOC
  attachment/decomposition function, humidity adjustment function, anti-
  fungus,

Superior Quality
ANGEL COAT is a wet fire-resistance coat. It was developed by a leading enterprise in the field of environmental industry, Singang Hi-Tech Co., Ltd based on its rich experience and excellent technologies and it has various qualities such as excellent fire resistance, durability, anti-bacteria, anti-fungus, deodorization, dust-proof, anti-corrosion and earthquake-proof, anti-fungus, deodorization, dimensional stability, attachment, and workability

Environmentally-friendly Quality
ANGEL COAT is made up of natural material, volcanic ashes created 250million years ago as its main ingredient so it is not harmful to the environment. It is environmentally-friendly fire-resistance coat that considers not only the safety of building but also environment and human health.

Economic Feasibility
As ANGEL COAT is highly fire-resistant, it only needs a thinner coat, on spraying. Thus it can shorten the period of time necessary for work and its anti-fungus quality obviates the need for additional maintenance work for fungus so reducing the overall construction expenses.

Type of Angel Coat
Type name  Use Related law
Angel Coat - AT Ground Steel Frame fire-resistance coat Ministry of Construction & Transportation Notice
No. 0000-00
Angel Coat - AX
 Underground Steel Frame fire-resistance coat Ministry of Construction & Transportation Notice
No. 0000-00
Angel Coat - ST Insulating sound absorption finish Energy Saving Design Standard

Use of Angel Coat
- Steel Frame beam for buildings - fire-resistance coat of pillar
- Heat insulation, sound absorption, noise-proof
- Fire-resistance coat for steel structure
- Fire-resistant coat for subway structure (Repressing fungus)


Quality of Angel Coat

Item Content
Density 350kg/§³
Binding power
6,800kgf/§³
Dust grade 0.01g

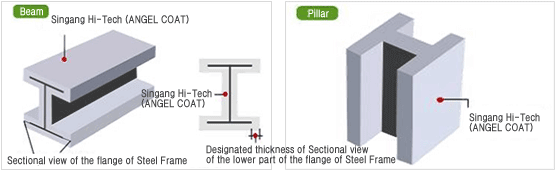

Coat Thickness of Angel Coat by time
Tank Fire-Resistance time Coat thickness (mm) Test method
Beam
(Ends of flange on the lower part of steel frame)
 1 hr
2 hrs
3 hrs
 15mm (over 10)
20mm (over15)
28mm (over22)
 Korea Institute of Construction Technology
Pillar
1 hr
2 hrs
3 hrs
 12mm
20mm
28mm		 Operation principle details

Excellent fire-resistance
Use volcanic ash a natural material that has lowest thermal conduction to maximize fire-resistance and there is no toxic gas generation in case of fire.

Excellent durability by strong binding power
As it uses a natural binder with strong durability, it has an excellent measuring stability as there is no shrinkage in drying. In addition, there is no dew condensation while its anti-fungus trait ensures the absence of fungus which is often a problem for underground levels.

Dust-resistance
Easy to install in any structure, with no exfoliation and cracks. Also as it is free from water-fast or dust, it does not require top coat treatment

Workability and economic feasibility
The minimum coat thickness allows one application so that it reduces material costs and construction period, thereby maximizing overall economic feasibility
