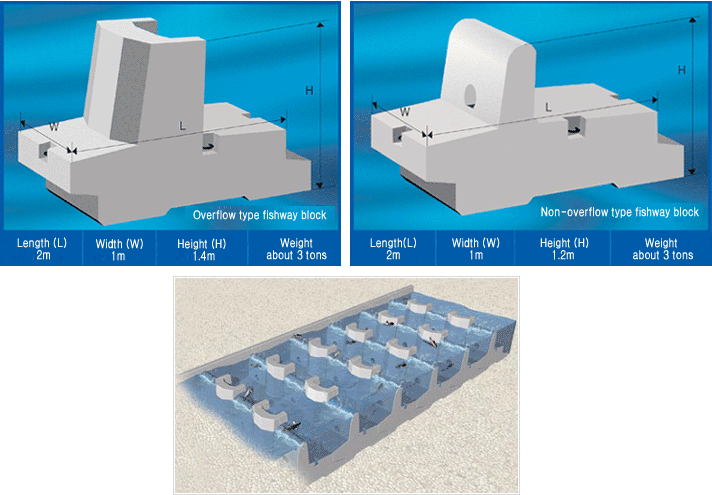

- An Ice Harbor Type Fishway that combines overflow and non-overflow types
- The outcome of two years¡¯ research in part of the Next-Generation Core Environmental Technology Projects by Ministry
  of Environment
- ¡°Development of Eco-Corridor Technologies including Fishways in River¡± (In cooperation with Korea Rural Community &
   Agriculture Corporation
- Assembly-type blocks that employ a format recognized as the best fishway in terms of the effect on fish use by Ministry of
   Maritime Affairs and Fisheries
- The only product that has proven its effect on fish use through monitoring of the site installation and model experiments
   (two years)


- Available for all types of fish regardless of their varied swimming abilities
- Provide enough distance (2m) and depth (70cm) for fish to jump
- When installing 1:20 slope, erect 90¡Æ partition wall in accordance with fishway design guideline
- Stable flow duration and appropriate current in the fishway with no circulation flow
- Solve the problem of difficulty in precision construction, lessened compression strength, and excessive construction
  period for cast-in-place construction
- Provide the best resting place for fish ascending
- Secure structural stability through four side combination- top, bottom, left and right between blocks
- Prevention of soil sedimentation and added ecological function with the utilization by benthos of orifices within blocks

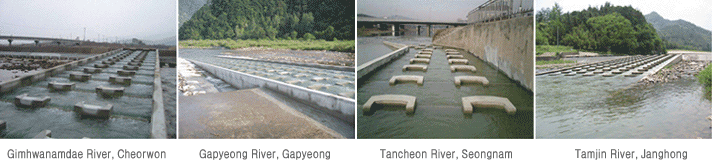

- Check if there is any ascending by fish through monitoring (Tamjin River and Tancheon River, etc.)

- Designated as the New Environmental Technology by Ministry of Environment (no. 111)
- Recognized as an excellent product by Public Procurement Service (no. 2005062)
- Sealed a contract on the third party unit prices with Public Procurement Service
- Patent Registration: no. 0477555, no. 0478900, no. 10-0641823
- Design Registration: no. 0389040, no. 03-0415337, no. 30-0442463
- Recognized as a Korean company with excellent quality competitiveness (no. 03-01)
- Acquired ISO 9001 certificate

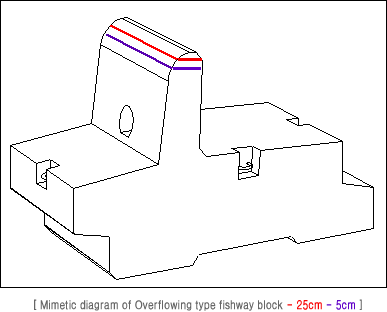

Water-Level Response Type Fishway
Assembly ice harbor type fishway can have insufficient capacity to respond to varying water levels in a river as they have partition overflowing walls of identical height. During draught season, it would lead to a bumpy water flow. This fishway was designed to solve such a problem by lowering the height of the overflowing wall by 2.5, to 5cm to have the capacity to respond to the changes in water level in the river. To experiment with the water level response type fishway model, we applied various levels of overflowing water then measured flow rates and overflowing depth in two different arrangements of fishway blocks. As a result, we found that fish types that ascend through the overflow would not be restricted by flow rate and water level responses vary depending on their arrangements.
