Environmentally-friendly ecological blocks used in rivers. This patent application block¡¯s design has been registered and utilized in various purposes such as scour protection blocks, shore protection blocks, ground still bed still blocks, shoal blocks, etc.

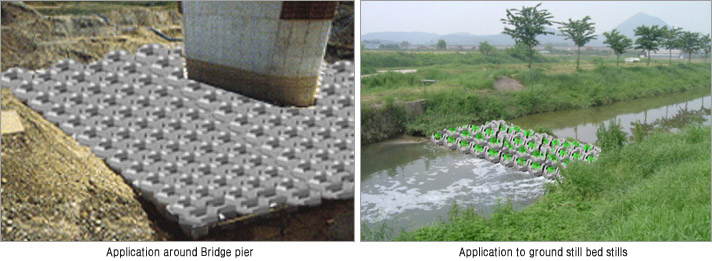

1) Work to restore ecosystem (habitats) and to protect shore around the water withdrawal beam, piers for scour prevention

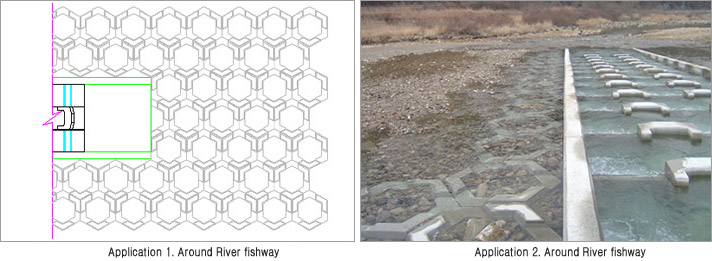

  and river protection, bends with severe local scours, water structures such as fishways, etc.
2) Work as a ground still bed still by installing laminates in the river for ground still bed still
3) Works to create artificial shore and marsh

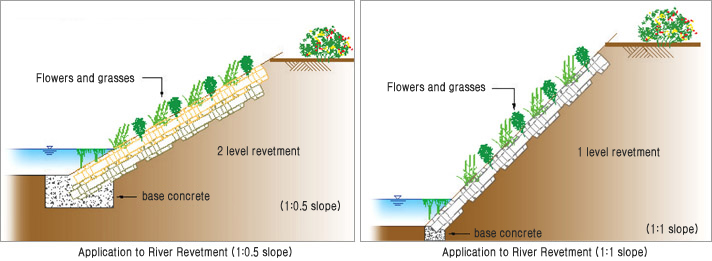

4) Utilized for various purposes such as bank and slope vegetation protection and prevent the loss of plants to support bank protection, applied to steep slope and sloping roads, etc.

Specifications 1.8m¡¿1.8m¡¿0.6m
(width ¡¿depth ¡¿height)
Weight  about 2.0 ton
Area Total 2.8§³
porous(planting part 1.25§³
Volume 0.7 §©/ea
Strength fck= 300kg/§²
Material Concrete

1) Various arrangement composition
  - Combination type block that is easy to install, capable of creating various images and strong against scour
2) Utilization of internal space
  - Environmentally-friendly method that plants water weeds, grasses and flowers though internal soil coverings connected to
    embankment
3) Block stability
  - Easy to prevent shifting of blocks and breakaway, to prevent loss or damage with excellent durability
  - Excellent in connecting to the existing foundation with agraffe installing
4) Wide applicable range
  - Prevent scour around water structures in river, bank protection for cutting slopes, and revetment, ground still bed still,
    shore, etc.
5) Underwater aeration
  - Create oxygen in the river through underwater aeration projections within blocks

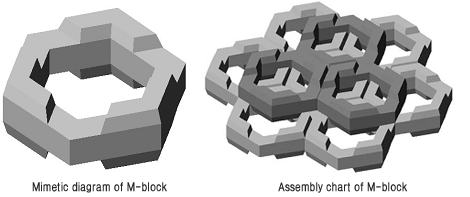

6) Connectivity among blocks
  - A form that has block¡¯s projection parts go in gear without using any connecting tools
  - Able to connect with three-projection part on the block
  - Excellent connectivity through wire connection between blocks
7) Ecosystem Function
  - Create biotope with various vegetations as it has wide porous space compared to area
8) Easy to install
  - As it is assembly type, it is easy to deliver, install and connect among blocks thereby reducing a construction period
